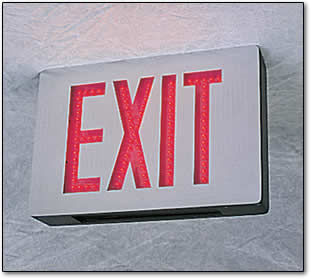

Die Cast Direct LED Exits - DXD

Dimensions

Height: 8.4"
Width: 12.0"
Depth: 2.3"

Canopy
(When Applicable)

Length: 4.7"
Width: 4.7"
Depth: 0.8"


Series Features

  • 120/277 VAC Operation
  • Maximum Input Rating (120 or 277 VAC)
    Single Face 3.6 Watts
    Double Face 5.8 Watts
  • Light Eliminating Diodes
  • Illuminates with Uniform Color and Brightness
  • 100-300 Ft. Visibility
  • 25+ Years Expected Life
  • Contemporary Styling
  • Canopy Standard on Double Face Signs
  • Die Cast Aluminum Housing
  • Thin Edge Black Housing
  • Brushed Aluminum Stencil Face
  • Directional Chevron Snap-outs
  • Downlight
  • 2 Year Payback

Additional Emergency Unit Features

  • Integrated Solid State System
  • Multi-Rate, Controlled Automatic Charger Circuit
  • Low Voltage Battery Cutoff
  • Brownout Sensitivity
  • Sealed Nickel Cadmium Battery
  • 6 Volt Operation
  • 10 Year Battery Warranty
  • Maintenance Free
  • Test Switch
  • Red (Power On) Indicator

Factory Options

-CPY Canopy (Sgl Face Signs)
-BZ Buzzer (DXDS Only)
-FAI Fire Alarm Interface. Visual Alarm
-FL Flasher (DXDS Only)
-HI High Intensity LED's
-TP Tamper-proof Screws
-RMB Recessed Mount Black
-RMW Recessed Mount White
-SL Slave
-DL Downlight






Ordering Information

DXD
Series
S
Power Mode
2
# Faces
G
Letter Color
W
Stencil Color
W
Housing Color
-FAI
Options
DXD ~ Die Cast
A ~ AC
S ~ Emergency
1
2

Red
Green

White
Black
Aluminum*
White
Black*
Aluminum
Factory Options
* Standard
