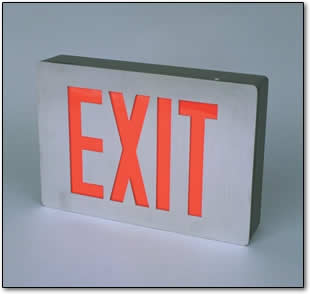

Die Cast Diffused LED Exits - DXL
|
Dimensions
Height: 8.3 "
Width: 12.0"
Depth: 2.3"
Canopy
(When Applicable)
Length: 4.7"
Width: 4.7"
Depth: 0.8" |
Series Features |
|
-
120/277 VAC Operation
- Maximum Input Rating (120 or 277 VAC)
Standard 1.7 Watts
DS Option 3.5 Watts
|
|
- Light Eliminating Diodes
- Illuminates with Uniform Color and Brightness
- Indirect Placement for Diffused Legend Output
- 25+ Years Expected Life
|
|
- Contemporary Styling
- Canopy Standard on Double Face Signs
- Die Cast Aluminum Housing
- Thin Edge Black Housing
- Brushed Aluminum Stencil Face
- Directional Chevron Snap-outs
- UL Listed
|
Additional Emergency Unit Features |
|
- Integrated Solid State System
- Constant Current, Controlled Automatic Charger Circuit
- Low Voltage Battery Cutoff
- Brownout Sensitivity
|
|
- Increased LED Brightness Level in Emergency Mode
|
|
- Sealed Nickel Cadmium Battery
- 5 Year Shelf Life
- 10 Year Battery Warranty
- Maintenance Free
|
|
- 3+ Hours Illumination in Emergency Mode
- Test Switch
- Red (Power On) Indicator
|
Factory Options |
| -6 |
(2) 6 VDC, 6 Watt Incan. Lamps |
| -12 |
(2) 12 VDC, 6 Watt Incan. Lamps |
| -CPY |
Canopy (Sgl Face Signs) |
| -DS |
Double LED Strips for Increased Illumination Level |
| -HI |
High Intensity LED's |
| -RMB |
Recessed Mount Black |
| -RMW |
Recessed Mount White |
| -SL |
Slave |
| -DMP |
Damp Location |
| -TP |
Tamper-proof Screws |
|
 |
 |
Ordering Information |
|
S
Power Mode |
2
# Faces |
R
Letter Color |
A
Stencil Color |
B
Housing Color |
|
DXL ~ Die Cast |
A ~ AC
S ~ Emergency
|
1
2 |
Red
Green
|
White
Black
Aluminum*
|
White
Black*
Aluminum |
Factory Options |
| * Standard |
|
