Commercial Products - EM10
|
Dimensions

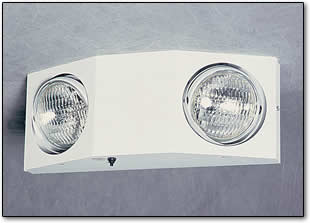

EM10
Height: 6.5 "
Width: 16.0"
Depth: 4.5"
|
| The EM10 Series offers a high-end look for
low-budget dollars. Designed to meet
demanding architectural requirements, the
attractive bevel design and recessed lamp
heads complement commercial environments. |
Series Features |
|
- Integrated Solid State System
- Multi-Rate, Controlled, Automatic Charger
- Lock Out (Automatic Battery Connect)
- Low-Voltage Battery Cutoff
- Brownout Sensitivity
- Dual-Voltage Transformer for
120/277 VAC Operation
- Maximum Input Rating
120VAC 60 Hz 0.05 Amps
277VAC 60 Hz 0.02 Amps
|
|
- HIT Lamps
- PAR-36 Sealed Beam Lamps
- STD Lamp: See Unit Information
|
|
- Sealed Lead Acid Battery
- 6-Volt Operation
- Maintenance-Free
|
|
- Contemporary Bevel Design
- 20-Gauge Steel Housing
- Fully Recessed Lamp Enclosures
- Bi-Axial Lamp Rotation
- Universal Mount Backplate
- White Powder-Coat Finish
- Test Switch
- Red (Power On) and Green (Trickle Charge) LED Indicators
- UL Listed
- New York City Approved/Calendar #38236
|
Unit Information |
Model
Number
|
Std.
Lamp
Watt |
Watts per Hour |
Replacement
Battery |
|
EM10 |
8 |
|
(1) S68 |
EM10A |
8 |
|
(1) S610-SL |
EM10B † |
12 |
|
(1) S610-SL |
| †Chicago Code Approved |
Illumination is rated to 87.5% of nominal system voltage and recharge to full capacity within 24 hours.
NEC requires 1.5 hours of emergency illumination. |
Factory Options |
| -** |
Special Lamp Wattage |
|
 |
