Commercial Products - EM20

Dimensions

EM20

Height: 13.5"
Width: 13.5"
Depth: 4.75"

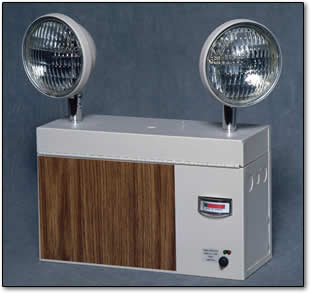

Shown in Standard Beige Finish with Wood Grain Panel

The EM20 Series is a high-end commercial unit, offering the appealing blend of durable steel construction with an attractive, neat appearance. Enhanced unit status information is provided through indicator and meter displays.

Series Features
  • Integrated Solid State System
  • Multi-Rate, Controlled, Automatic Charger
  • Lock Out (Automatic Battery Connect)
  • Low-Voltage Battery Cutoff
  • Brownout Sensitivity
  • Fused AC Input & DC Output Circuit Protection
  • Dual-Voltage Transformer for
    120/277 VAC Operation
  • Maximum Input Rating
    120VAC 60 Hz 0.35 Amps
    277VAC 60 Hz 0.15 Amps
  • HIT Lamps
  • Par-36 Sealed Beams
  • STD Lamps - See Unit Information
  • Sealed Lead Acid Battery/Sealed Ni-Cad
  • 6 or 12 Volt Operation
  • Maintenance-Free
  • Rugged 20 Guage Steel Housing
  • Top End Battery Access
  • Full Length Piano Hinge
  • Key Hole Mounting
  • Beige Powder Coat Finish Standard
  • Woodgrain Panel Design
  • Test Switch
  • Ammeter
  • RED (Power On) & Green (Trickle Charge) LED Indicator
  • UL Listed
  • New York City Approved/Calendar #32110

Unit Information

Model
Number

Std.
Lamp
Watt

Watts per Hour

Replacement
Battery

1.5

2

3

4

5

6

7

8

EM20
8

18

14

9

7

-

-

-

-
(1) S68
EM21
8

45

36

20

15

12

10

9

8
(2) S68
EM22
8

64

50

32

24

19

16

14

12
(2) S610-SL
EM23
8

100

75

50

38

30

25

21

18
(1) S636
EM24 †
12

32

24

16

12

10

8

7

6
(1) S610-SL
EM25 †
12

45

36

20

15

12

10

9

8
(2) S68
EM26 †
12

64

50

32

24

19

16

14

12
(2) S610-SL
EM27 † *
12

36

27

18

14

11

9

8

7
(2) S68
EM28 † *
12

60

45

30

23

18

15

13

11
(2) S610-SL
EM29 † *
12

100

75

50

38

30

25

21

18
(1) S1215
EM24-N7 †
12

25

18

14

9

-

-

-

-
(1) N67F
EM28-N7 † *
12

50

36

24

18

14

12

10

9
(2) N67F
† Chicago Code Approved

* 12 Volt DC Output


Illumination is rated to 87.5% of nominal system voltage and recharge to full capacity within 24 hours.
NEC requires 1.5 hours of emergency illumination.

Factory Options

-CP Cord & Plug for 120 VAC Input
-NWG Less Wood Grain
-OW Designer Off-White Finish
-GY Industrial Grey Finish
-QC Quik-Chek Remote Test & Time Delay
-TD Time Delay - Adjusts 1-60 min.
-W White Finish
-V Voltmeter*
-** Special Lamp Wattage
* In place of Ammeter
