Commercial Products - EM62
|
Dimensions
EM62
Height: 12.75"
Width: 10.75"
Depth: 4.875"
|

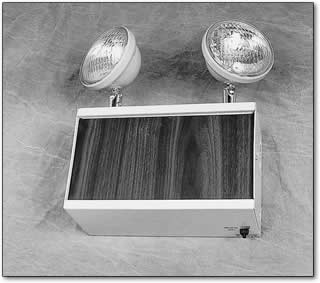

| Shown with - Optional Woodgrain Finish |
Series Features |
|
- Integrated Solid State System
- Multi-Rate, Controlled, Automatic Charger
- Lock Out (Automatic Battery Connect)
- Low-Voltage Battery Cutoff
- Brownout Sensitivity
- Dual-Voltage Transformer for
120/277 VAC Operation
- Maximum Input Rating
120VAC 60 Hz 0.35 Amps
277VAC 60 Hz 0.15 Amps
|
|
- HIT Lamps
- Par-36 Sealed Beams
|
|
- Sealed Lead Acid Battery
- 6 or 12 Volt Operation
- Maintenance-Free
|
|
- Contemporary Styling
- 20 Guage Steel Housing
- Universal Mount Backplate (EM62)
- Beige Powder Coat Finish
- Test Switch
- RED (Power On) & Green (Trickle Charge) LED Indicator (EM62)
- UL Listed
|
Unit Information |
Model
Number
|
Std.
Lamp
Watt |
Watts per Hour |
Replacement
Battery |
|
EM62 |
6 |
|
(1) S68 |
EM62A |
6 |
|
(1) S610-SL |
EM62B |
6 |
|
(2) S68 |
EM66* |
12 |
|
(2) S610-SL |
EM68* |
12 |
|
(1) S1215 |
*12 Volt DC Output |
Factory Options |
| -A |
Ammeter* |
| -CP |
Cord & Plug For 120 VAC Input |
| -H |
Halogen |
| -NC |
Ni-Cad Battery |
| -NH |
No Heads |
| -WGC |
Woodgrain Cover |
| -V |
Voltmeter* |
| -WG |
Wire Guard |
| -** |
Special Lamp Wattage |
|
 |
* Choose Only One
*** Consult Factory for Color Options |
