Dimensions

EM90

Height: 17.25"
Width: 15.75"
Depth: 7.50"

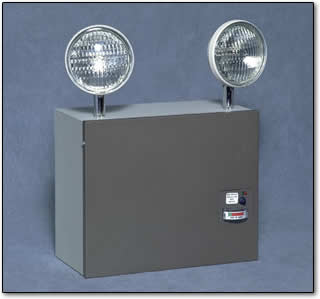

Shown in Standard Two-Tone Beige & Cocoa Finish

Streamlined product design makes the EM90 Series the perfect choice for light industrial facilities where aesthetics and performance are of principal consideration. Available with sealed or refillable batteries for use in a wide temperature range.

Series Features

• Integrated Solid State System
• Multi-Rate, Controlled, Automatic Charger
• Lock Out (Automatic Battery Connect)
• Low-Voltage Battery Cutoff
• Brownout Sensitivity
• Fused AC Input & DC Output Circuit Protection
• Dual-Voltage Transformer for
  120/277 VAC Operation
• Maximum Input Rating
  120VAC 60 Hz 0.35 Amps
  277VAC 60 Hz 0.15 Amps

• Par-36 Sealed Beam Lamps
• STD Lamps
  6 VOLT ~ 25 WATT
  12 VOLT ~ 25 WATT

• Sealed NI-CAD Battery
• 6 or 12 Volt Operation

• Rugged 20 Guage Steel Housing
• Front End Battery Access
• Key Hole Mounting with Integral Shelf
• Two-Tone Powder Coat Finish (Beige & Cocoa) Standard
• Test Switch
• Ammeter
• Modular Control Chassis
• RED (Power On) & Green (Trickle Charge) Indicators
• UL Listed
• New York City Approved/Calendar #38236

Unit Information

Model
Number

Std.
Lamp
Watt

Watts per Hour

Replacement
Battery

* 12 Volt DC Output
