Dimensions

MS

Height: 20.5"
Width: 18.5"
Depth: 8.5"

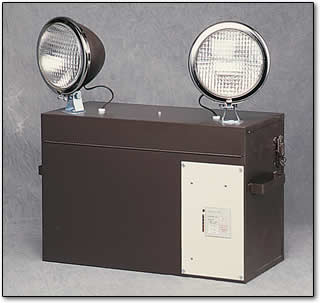

Shown in Standard Two-Tone Beige & Cocoa Finish

Rugged steel construction is combined with state-of-the-art LED status indicators, making
the MS Series an ideal choice for demanding industrial applications. A slide-out modular
control assembly allows for quick and easy product upgrades.

Series Features

• Integrated Solid State System
• Three-Rate, Controlled, Automatic Charger
• Low-Voltage Battery Cutoff
• Brownout Sensitivity
• Fused AC Input & DC Output Circuit Protection
• Single Voltage Transformer for
  120 VAC Operation
• Maximum Input Rating
  120VAC 60 Hz 0.50 Amps
  277VAC 60 Hz 0.23 Amps

• Par-46 Sealed Beam Lamps
• STD Lamps - See Unit Information

• Sealed Lead Acid Battery [S]
• Refillable Lead Acid Battery [L]
• 6 or 12 Volt Operation

• Rugged 20 Guage Steel Housing
• Top End Battery Access
• Full Length Piano Hinge with Lock Hasp
• Integral Carrying Handles
• Two-Tone Powder Coat Finish (Beige & Cocoa) Standard
• Slide Out Control Chassis
• Test Switch
• Battery Capacity Indicator Incremental LED panel indicates current battery charge / discharge status
• Amber (AC On) LED Indicator
• UL Listed

Unit Information

Model
Number

Std.
Lamp
Watt

Watts per Hour

Replacement
Battery

Illumination is rated to 87.5% of nominal system voltage and recharge to full capacity within 24 hours.
NEC requires 1.5 hours of emergency illumination.

The DO Model provides two separately fused DC (20A) output circuits for increased system capacity, without the use of additional batteries.
