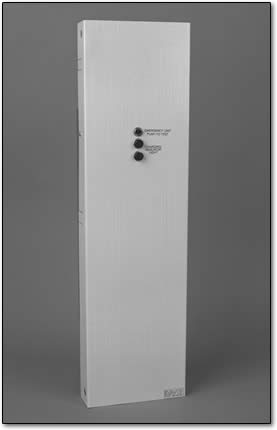

Emergency Ballasts - Multi-Pak Series
|
Dimensions
Height: 3.5 "
Width: 23.75 "
Depth: 6"
|
Series Features |
- High Frequency Fluorescent Efficiency
- Compatible with Magnetic or Electronic Ballasts
- Operates 2' through 8' Fluorescent Lamps
- Out of Sight Equipment Location
- Usable in New Construction or Retrofit
- Test Switch and LED Indicator Light Included
- Nickel Cadmium Battery
- Fully Automatic Brownout Sensing
- Installation does not Affect Normal Operation of Lamp/Ballast
- All Steel Powder Coated Housing
- Solid State Reliability
- Simple Installation in T-Bar Type Ceilings
- Low Voltage Disconnect
- Meets or Exceeds UL 924
|
Light Output |
Description
|
Total Lumens |
# Lamps |
Size |
MP1800 |
1400 |
2 |
2'-4' |
MP1800 |
1400 |
1 |
2'-8' |
Fits most single and bipin T8 & T12 lamps, HO or VHO fluorescent lamps.
Note: For Higher Lumens or More Lamps in Emergency Mode, Contact the Factory. |
Factory Options |
| -RTBH |
Remote Mounted test button and pilot light |
|
|
Ordering Information |
|
1800 |
|
Series |
|
|
|
