Quick - Chek Pak

Operational Comparison

Test Switch Inspection
Quik-Chek™ Inspection
Inspection Period Monthly Inspection Period Monthly
Inspection Time 16 Minutes Inspection Time 2 Minutes
# in Inspection Team 2 People* # in Inspection Team 1 Person

Additional Equipment

- Ladder
- Extension Device
Additional Equipment Transmitter
*Substitute 32 minutes per Unit if 1-Person Team is Used - Additional Personnel to Check Remotes
A Routine Monthly Maintenance Schedule Exercises the Battery and Prolongs Unit Life.

On average, Quik-Chek™ reduces inspection time by over 3 hours per unit annually. However, no unit – whether it be diagnostic, self-test, or remote test – is worth the cost unless emergency equipment is checked on a regular basis (as required by code). Only Quik-Chek™ allows for full code complied tests, and will pay back the total cost of the unit it tests.


The Quik-Chek™ Pak
Remote Control Testing for any brand Emergency Light


  • Checks Any Brand Emergency Lights
  • No Loss in Emergency System Capacity
  • Input Rating: 120VAC, 60 Hz
  • Output Rating: 120VAC, 60 Hz, 2 Amp Max. Load
  • Operates on Coded Digital Frequency
  • 50-Foot Range Minimum
  • 1–90 Minute Adjustable Time Delay
  • Automatically Locates Recessed or Out-of-Reach Uunits
  • Permits One Individual to Conduct and Record Tests
  • Eliminates Work Stoppage Resulting from Ladders and Extension
    Equipment being Placed in the Workplace
  • Allows for Fast Maintenance in High-Traffic Areas
  • Automatic System Reset to Standby
  • Dimensions: 8.5" L x 6.5" H x 3.5" D

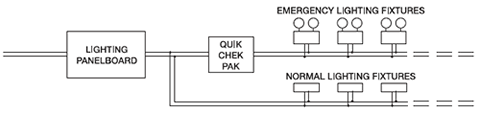

Typical Installation
