NEMA Emergency Lights - SE

Dimensions

Height:
16.9"

SE20
Width:
9.4"

SE36

Depth:
5.5"


Height:
18.8"

SE50
Width:
11.4"

SE75
Depth:
5.5"

Height:
20.6"

SE100
Width:
13.5"

SE125
Depth:
7.0"

Height:
20.6"

SE200
Width:
13.5"

SE250
Depth:
7.0"

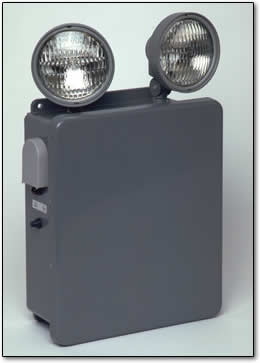

Constructed of industrial-grade fiberglass, the SE Series is the only choice for severe or corrosive applications. All units satisfy the requirements of NEMA 1, 2, 3, 3R, 4, & 4X Environments.

Series Features

NEMA APPLICATIONS

  • All Units Satisfy the Requirements of
    NEMA 1, 2, 3, 3R, 4, 4X, 12 & 13 Enclosures
  • Integrated Solid State System
  • Multi-Rate, Controlled, Automatic Charger
  • Lock Out (Automatic Battery Connect)
  • Low-Voltage Battery Cutoff
  • Brownout Sensitivity
  • Dual-Voltage Transformer for
    120/277 VAC Operation
  • Maximum Input Rating
    120VAC 60 Hz 0.35 Amps
    277VAC 60 Hz 0.15 Amps
  • Par-36 Sealed Beam Lamps
  • STD Lamps
    6 VOLT ~ 8 WATT
    12 VOLT ~ 12 WATT
  • Sealed Lead Acid Battery
  • 6 or 12 Volt Operation
  • Maintenance Free
  • NEMA Rated for Corrosive, Dirty, or Damp Environments
  • Industrial Gray Fiberglass Housing
  • Polycarbonate Lamp Enclosures
  • Hinged Front Panel with Lock Hasp
  • Easy Battery Access
  • Side Mounted Test Switch
  • RED (Power On & Charge) Indicator
  • Meets or Exceeds UL 924

Unit Information

Model
Number

BATT VLTG

Std.
Lamp
Watt

Watts per Hour

Replacement
Battery

1.5

2

3

4

5

6

7

8
SE20
6
8

18

14

9

7

-

-

-

-
(1) S68
SE36
6
8

32

24

26

12

10

8

7

6
(1) S610-SL
SE50
6
8

45

36

20

15

12

10

9

8
(2) S68
SE75
6
8

64

50

32

24

19

16

14

12
(2) S610-SL
SE100
6
8

100

75

50

38

30

25

21

18
(1) S636
SE200
6
8

200

150

100

75

60

50

43

38
(2) S636
SE50-12
12
12

36

27

18

14

11

9

8

7
(2) S68
SE75-12
12
12

60

45

30

23

18

15

13

11
(2) S610-SL
SE100-12
12
12

100

75

50

38

30

25

21

18
(1) S1215
SE125-12
12
12

120

90

60

45

36

30

26

23
(1) S1220
SE200-12
12
12

200

150

100

75

60

50

43

38
(2) S636
SE250-12
12
12

250

200

125

100

90

80

73

68
(1) S1224

Illumination is rated to 87.5% of nominal system voltage and recharge to full capacity within 24 hours.
NEC requires 1.5 hours of emergency illumination.

Factory Options

-QC Quik-Chek Remote Test & Time Delay
-TD Time Delay - Adjusts 1-60 min.
-** Special Lamp Wattage
-TH Thermal Heater
-NC Nickel Cadmium Battery
-H Halogen Lamps
-FSH Food Safe Heads












Ordering Information
SE

20
-QC
Series

Unit Size

Options
