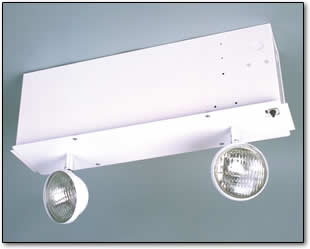

Providing a clean look in commercial installations, the STB Series combines the advantage of a fully recessed unit with maximum remote head capability.
Series Features
Integrated Solid State System
Multi-Rate, Controlled, Automatic Charger
Lock Out (Automatic Battery Connect)
Low-Voltage Battery Cutoff
Brownout Sensitivity
Fused AC Input & DC Output Circuit Protection
Dual-Voltage Transformer for
120/277 VAC Operation
Designed for use in 2 ft. grid (T-Bar) Drop Ceilings
Easy Access Battery Panels
20-Gauge Steel Housing
Unit Mounts up to 4 Lamp Heads
White Powder Coat Finish
Test Switch
Red (Power On) LED Indicators
UL Listed
New York City Approved/Calendar #38236
Unit Information
Model
Number
Std.
Lamp
Watt
Watts per Hour
Replacement
Battery
1.5
2
3
4
5
6
7
8
STB18-6
8
18
14
9
7
-
-
-
-
(1) S68
STB32-6 †
12
32
24
16
12
10
8
7
6
(1) S610-SL
STB45-6
8
45
36
20
15
12
10
9
8
(2) S68
STB64-6
8
64
50
32
24
19
16
14
12
(2) S610-SL
STB100-6
8
100
75
50
38
30
25
21
18
(1) S636
STB36-12 †
12
36
27
18
14
11
9
8
7
(2) S68
STB60-12 †
12
60
45
36
23
18
15
13
11
(2) S610-SL
STB100-12 †
12
100
75
50
38
30
25
21
18
(1) S1215
†Chicago Code Approved
Illumination is rated to 87.5% of nominal system voltage and recharge to full capacity within 24 hours. NEC requires 1.5 hours of emergency illumination.
