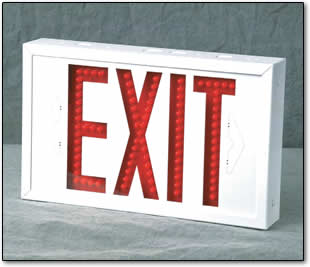

Steel Direct LED Exits - WXD
|
Dimensions
Height: 7.5"
Width: 12.3"
Depth: 2.0" |
Series Features |
|
-
120/277 VAC Operation
- Maximum Input Rating (120 or 277 VAC)
Standard Face 3.6 Watts
Double Face 5.6 Watts
|
|
- Light Emitting Diodes ~ 25+ Year Life
- Illuminates with Uniform Color and Brightness
- 100-300 Ft. Visibility
|
|
- Back, Ceiling, or End Mount
- Canopy
- 20 Gauge Steel Housing
- Acrylic Shield
- White Powder Coat Finish
- Universal Directional Chevrons
- UL Listed
|
Additional Emergency Unit Features |
|
- Maximum Input Rating (120 or 277 VAC)
Single Face 6.8 Watts
Double Face 8.0 Watts
- Integrated Solid State System
- Constant Current, Controlled Automatic Charger Circuit
- Low Voltage Battery Cutoff
- Voltage Surge Protection
- Brownout Sensitivity
|
|
- Sealed Nickel Cadmium Battery
- 5 Year Shelf Life
- 10 Year Battery Warranty
- Maintenance Free
|
|
- 3+ Hours Illumination (Single Face) in DCMode
- 1.5+ Hours Illumination (Double Face) in DCMode
- Test Switch
- Amber (AC On / Charger Operation) Indicator
|
Factory Options |
| -BZ |
Buzzer (Emer. Only) |
| -DL |
Downlight LED |
| -FAI |
Fire Alarm Interface Visual Alarm |
| -FL |
Flasher (Emer. Only) |
| -HI |
High Intensity LED's |
| -REC |
Recessed Housing |
| -TP |
Tamper-proof Screws |
| -SL |
Slave |
|
 |
 |
Ordering Information |
|
S
Power Mode |
2
# Faces |
R
Letter Color |
W
Stencil Color |
W
Housing Color |
|
WXD ~ Steel |
A ~ AC
S ~ Emergency
|
1
2 |
R ed
G reen
|
W hite *
B lack |
W hite *
B lack |
Factory Options |
| * Standard |
|
