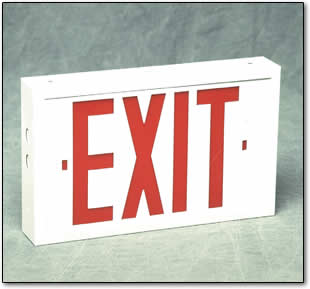

Steel Diffused LED Exits - WXL
|
Dimensions
Height: 7.5"
Width: 12.3"
Depth: 2.0" |
Series Features |
|
-
120/277 VAC Operation
- Maximum Input Rating (120 or 277 VAC)
Standard 1.7 Watts
DS Option 3.5 Watts
|
|
- Light Emitting Diodes ~ 25+ Year Life
- Illuminates with Uniform Color and Brightness
- Indirect Placement for Diffused Legend Output
|
|
- Ceiling, End, or Back Mount
- Canopy
- Universal Stencil
- Directional Chevron Snapouts
- 20 Gauge Steel Housing
- White Powder Coat Finish
- Easy Installation
- UL Listed
|
Additional Emergency Unit Features |
|
- Integrated Solid State System
- Constant Current, Controlled Automatic Charger Circuit
- Low Voltage Battery Cutoff
- Brownout Sensitivity
|
|
- Increased LED Brightness Level in Emergency Mode
|
|
- Sealed Nickel Cadmium Battery
- 5 Year Shelf Life
- 10 Year Battery Warranty
- Maintenance Free
|
|
- 3+ Hours Illumination in Emergency Mode**
- Test Switch
- LED (Power On) Indicator
|
| ** Longer illumination times available. Consult factory. |
Factory Options |
| -6 |
(2) 6 VDC, 6 Watt Incan. Lamps |
| -12 |
(2) 12 VDC, 6 Watt Incan. Lamps |
| -DS |
Double LED Strips for Increased Illumination Level or 2CKT Operation |
| -HI |
High Intensity LED's |
| -U |
Universal Face Add'l Backplate Dbl Face Only |
| -DMP |
Damp Location |
| -REC |
Recessed Housing |
| -TP |
Tamper-proof Screws |
|
 |
 |
Ordering Information |
|
S
Power Mode |
2
# Faces |
R
Letter Color |
W
Stencil Color |
W
Housing Color |
|
WXL ~ Steel |
A ~ AC
S ~ Emergency
|
1
2 |
R ed
G reen
|
W hite *
B lack |
W hite *
B lack |
Factory Options |
| * Standard |
|
